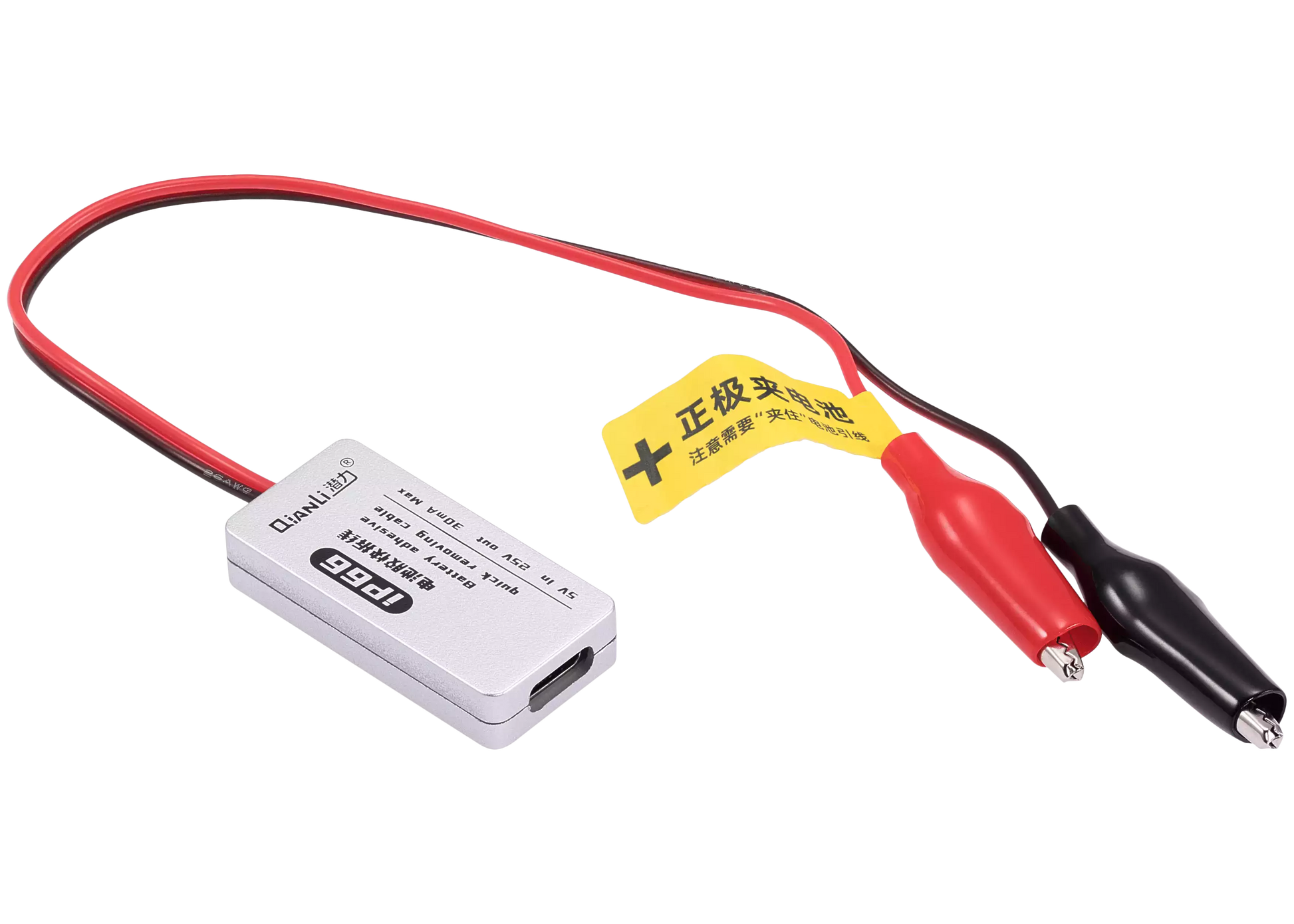

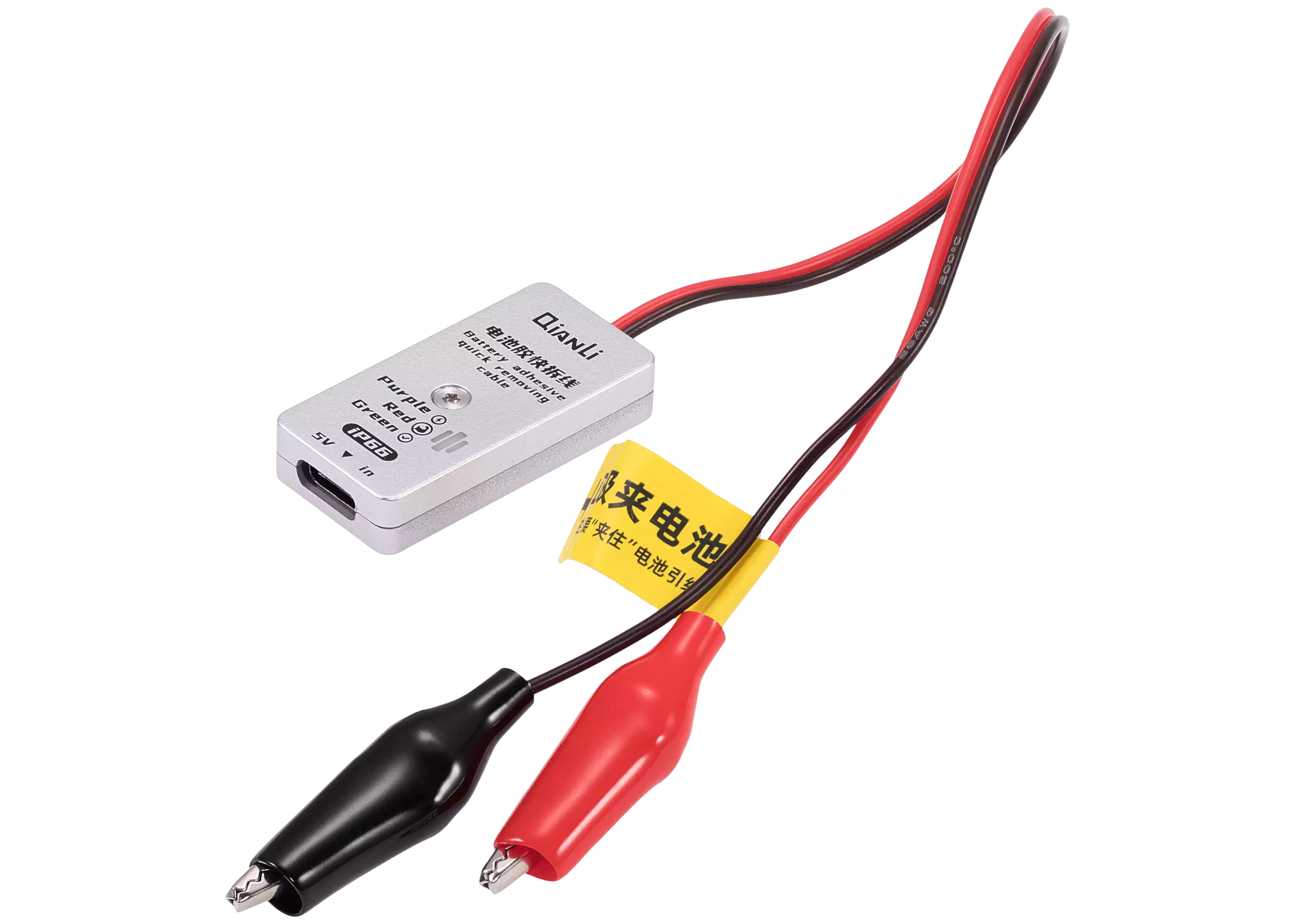

iP66 iPhone 16 Series Battery Adhesive Quick Removal Cable (Qianli)
iP66 iPhone 16 Series Battery Adhesive Quick Removal Cable (Qianli)
Regular price
$23.97 CAD
Regular price
Sale price
$23.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

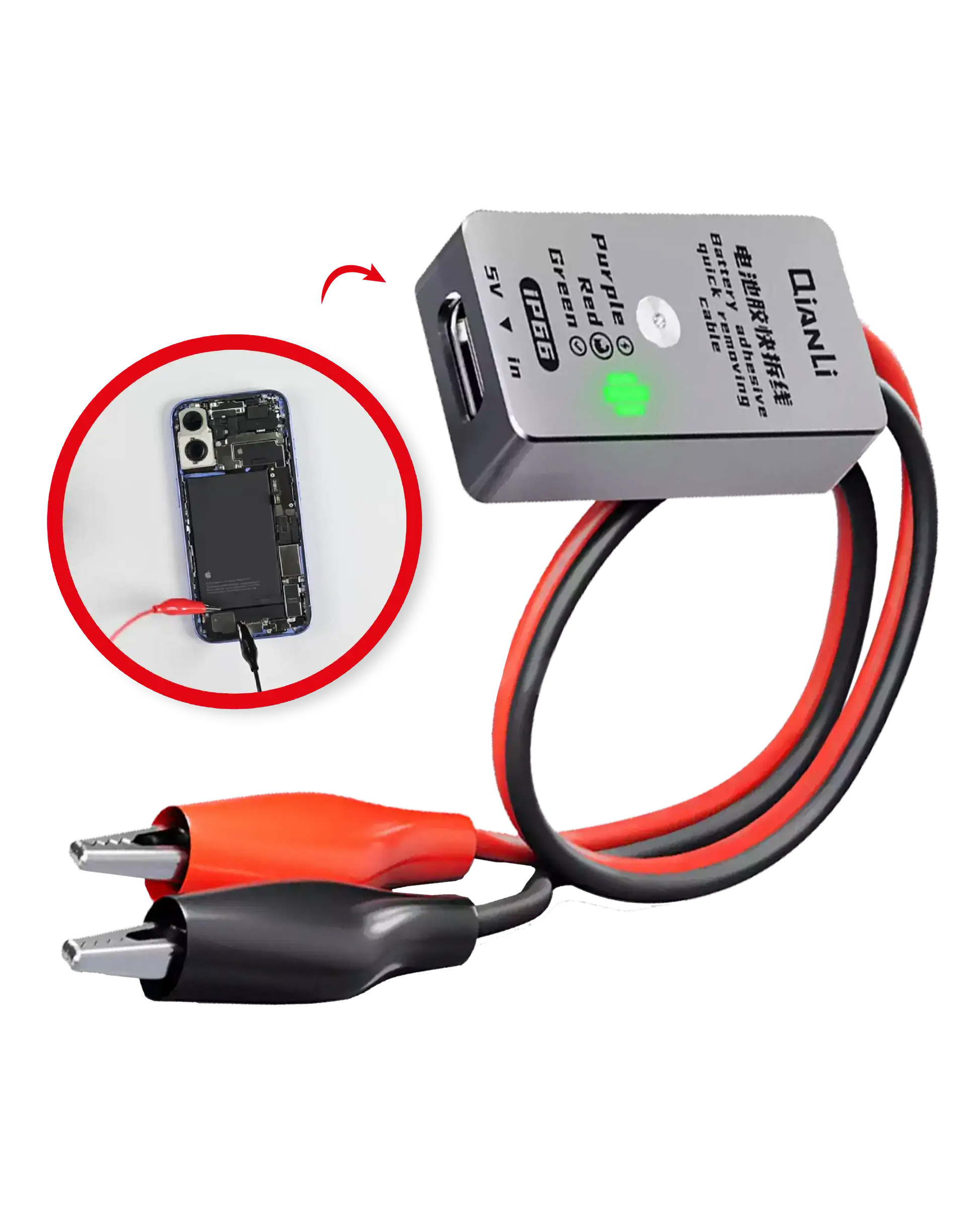

- Description: A specialized tool designed to quickly and safely remove the electrically-activated adhesive on iPhone 16/16 Plus batteries. This tool improves the efficiency of battery removal by utilizing controlled current, eliminating the need for fast charging. It operates with a 5V input, 25V output, and a 30mA current limit to prevent short circuit damage.
-
Features:
- 20cm plug-and-play cable for stress-free adhesive removal.
- Tracks the battery’s status by monitoring the electrolyzed current.
- Alligator clips of varying lengths reduce the risk of short circuits.
- Current limit protection with a status LED indicator for safe use.
- Operates with a 5V input and delivers a 25V output, limited to 30mA for added safety.
- Functionality assured, with fast shipping available in Canada.
-
Options:
- QianLi iP66 Battery Adhesive Quick Removing Cable.
- 9V battery connector with dual alligator clips for iPhone 16/16 Plus removal (requires a 5-20V power source or power bank).
- Functionality assured, with fast shipping available in Canada.
-

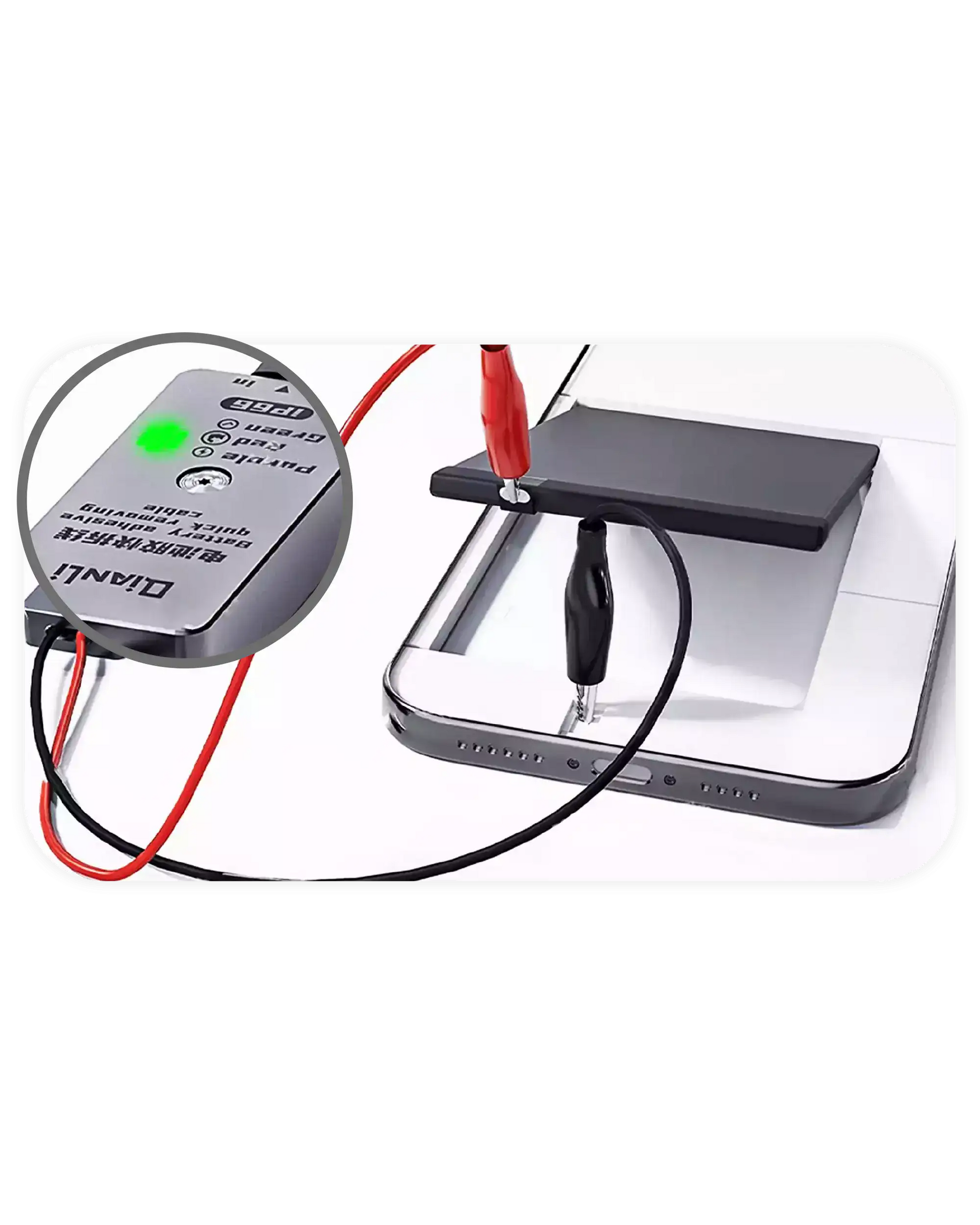

Steps for Adhesive Removal:
- Connect the Type-C cable. The indicator turns green, signaling the device is powered on (5V input compatible with standard USB ports).
- The indicator turns purple when the device begins electrolyzing the adhesive with significant current.
- Wait for the indicator to turn red, showing that adhesive viscosity is reduced, allowing for forceful battery removal.
- The indicator turns green again when the adhesive becomes ineffective, enabling easy battery removal.
- Functionality assured, with fast shipping available in Canada.
-

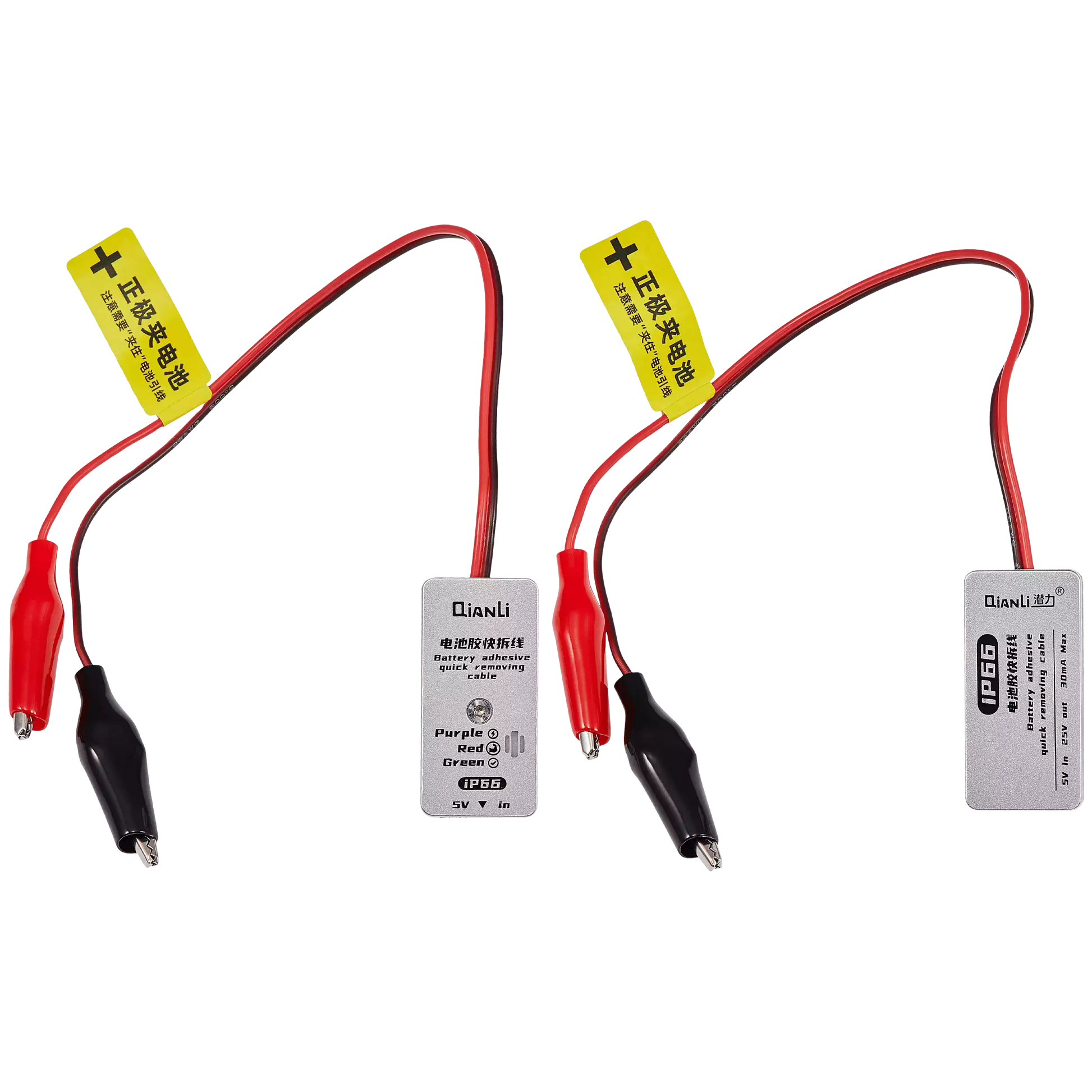

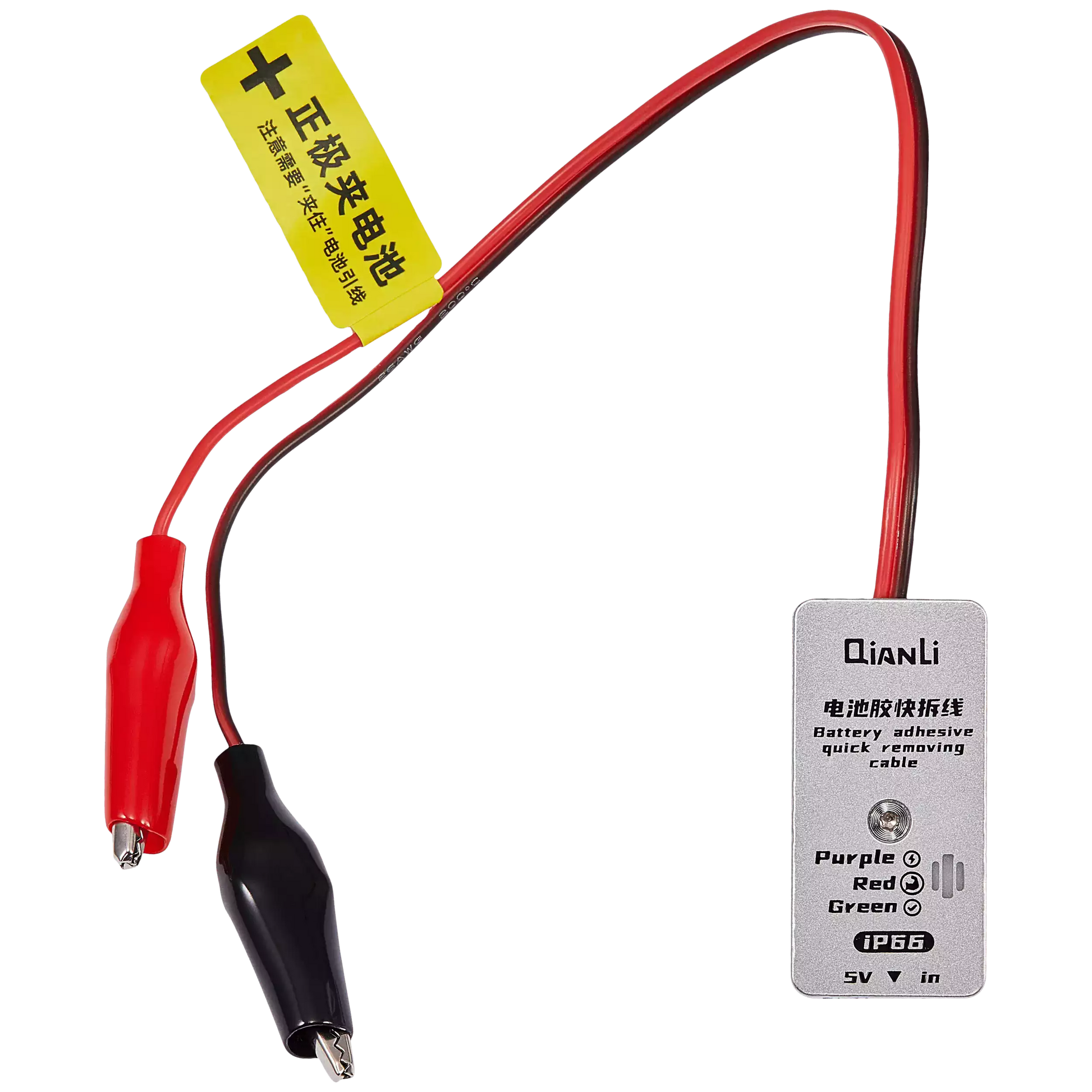

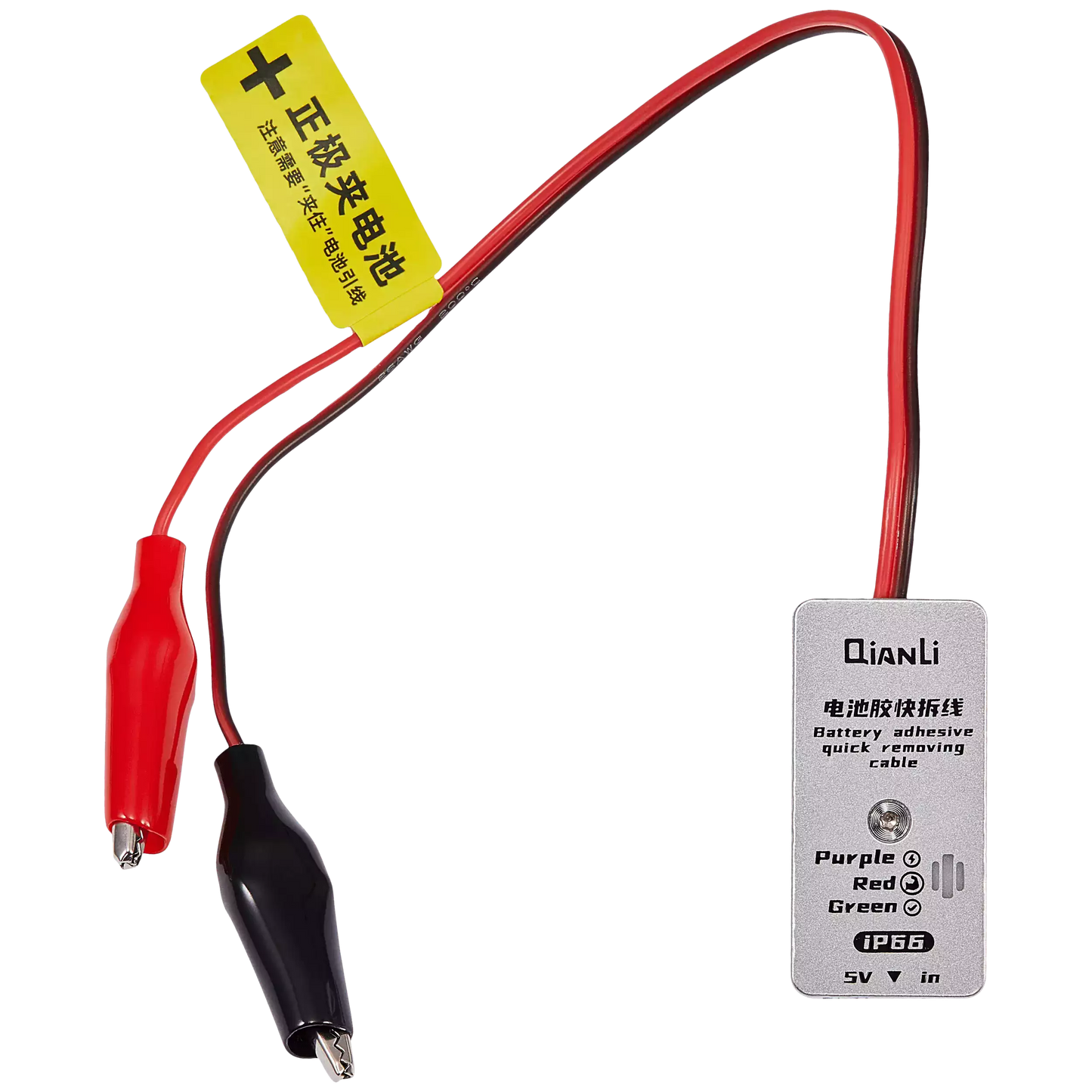

Indicator Light Guide:
- Green: Device is powered on but has no output.
- Purple: Device is actively electrolyzing the adhesive (high current).
- Red: Adhesive viscosity is reduced, allowing battery removal.
- Green (again): Adhesive is fully ineffective, enabling effortless battery removal.
- Functionality assured, with fast shipping available in Canada.
-
Product Specifications:
- Model: QianLi iP66 Battery Adhesive Quick Removing Cable
- Function: Electrolytic removal of battery adhesive
- Cable Length: 20cm
- Net Weight: 8.5g
- Packaging Size: 67mm x 64mm x 15mm
- Gross Weight: 13.5g

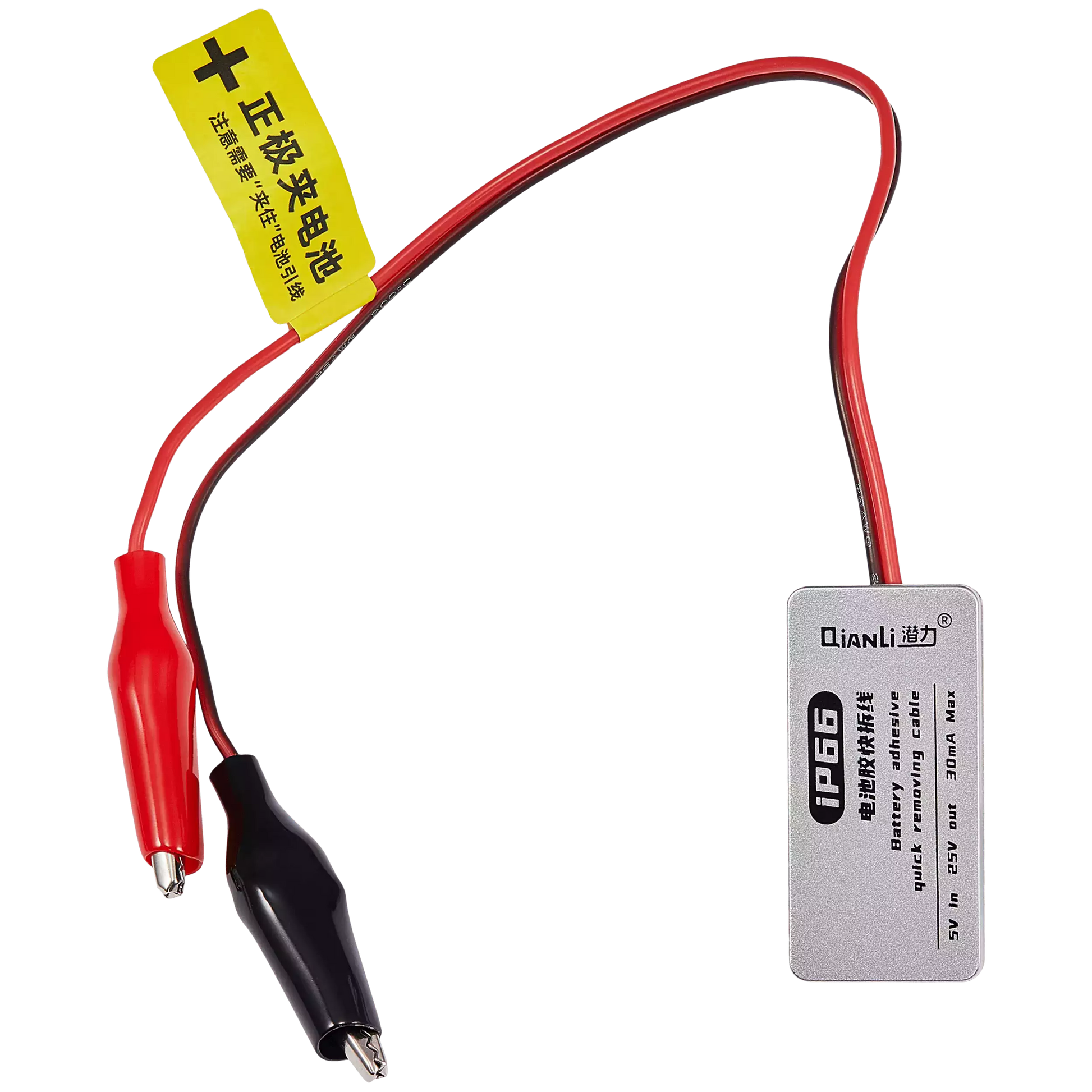

- Power Parameters: Type-C 5V input, 25~28V output, 30mA max
- Functionality assured, with fast shipping available in Canada.
- Functionality assured, with fast shipping available in Canada.
